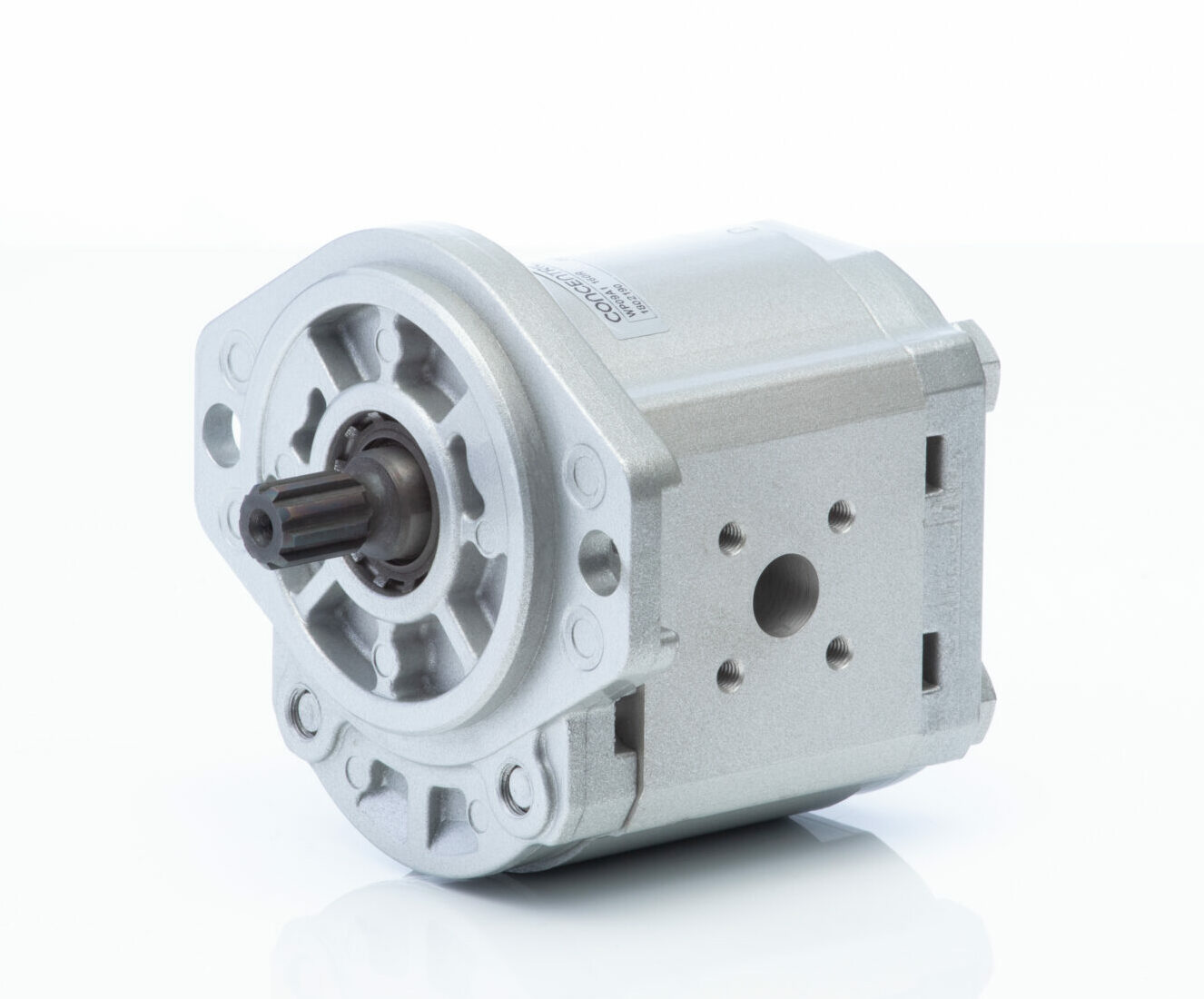

WP600 – Pump Group 1.5
- High-Performance external gear pump for heavy-duty-application
- Compact 3-piece design
- Aluminum housing standard
- Noise optimized for quiet operation
- Multiple sections possible (up to 3 sections)
- Standard interfaces available
- Customized options on demand
- Displacement : 3 -12 cm³/rev (0.183 – 0.732 in³/rev)
- Max. rated pressure : 276 bar (4000 PSI)
- Speed range : 700 to 4000 RPM
| Displacement | Flow @ 3600 rpm | Pressure Continuous | Pressure Intermittent |
|---|---|---|---|
| 0.183 cir | 2.85 gpm | 4000 psi | 4200 psi |
| 0.214cir | 3.34 gpm | 4000 psi | 4200 psi |
| 0.244 cir | 3.80 gpm | 4000 psi | 4200 psi |
| 0.275cir | 4.29 gpm | 4000 psi | 4200 psi |
| 0.305 cir | 4.75 gpm | 4000 psi | 4200 psi |
| 0.366 cir | 5.70 gpm | 4000 psi | 4200 psi |
| 0.427 cir | 6.65 gpm | 4000 psi | 4200 psi |
| 0.488 cir | 7.60 gpm | 4000 psi | 4200 psi |
| 0.610 cir | 9.50 gpm | 3200 psi | 3500 psi |
| .732 cir | 11.41 gpm | 2700 psi | 3000 psi |
| Displacement | Flow @ 3600 rpm | Pressure Continuous | Pressure Intermittent |
|---|---|---|---|
| 3.0 cc | 10.8 lpm | 276 bar | 290 bar |
| 3.5 cc | 12.6 lpm | 276 bar | 290 bar |
| 4.0 cc | 14.4 lpm | 276 bar | 290 bar |
| 4.5 cc | 16.2 lpm | 276 bar | 290 bar |
| 5.0 cc | 18.0 lpm | 276 bar | 290 bar |
| 6.0 cc | 21.6 lpm | 276 bar | 290 bar |
| 7.0 cc | 25.2 lpm | 276 bar | 190 bar |
| 8.0 cc | 28.8 lpm | 276 bar | 190 bar |
| 10.0 cc | 36.0 lpm | 221 bar | 241 bar |
| 12.0 cc | 43.2 lpm | 186 bar | 207 bar |
