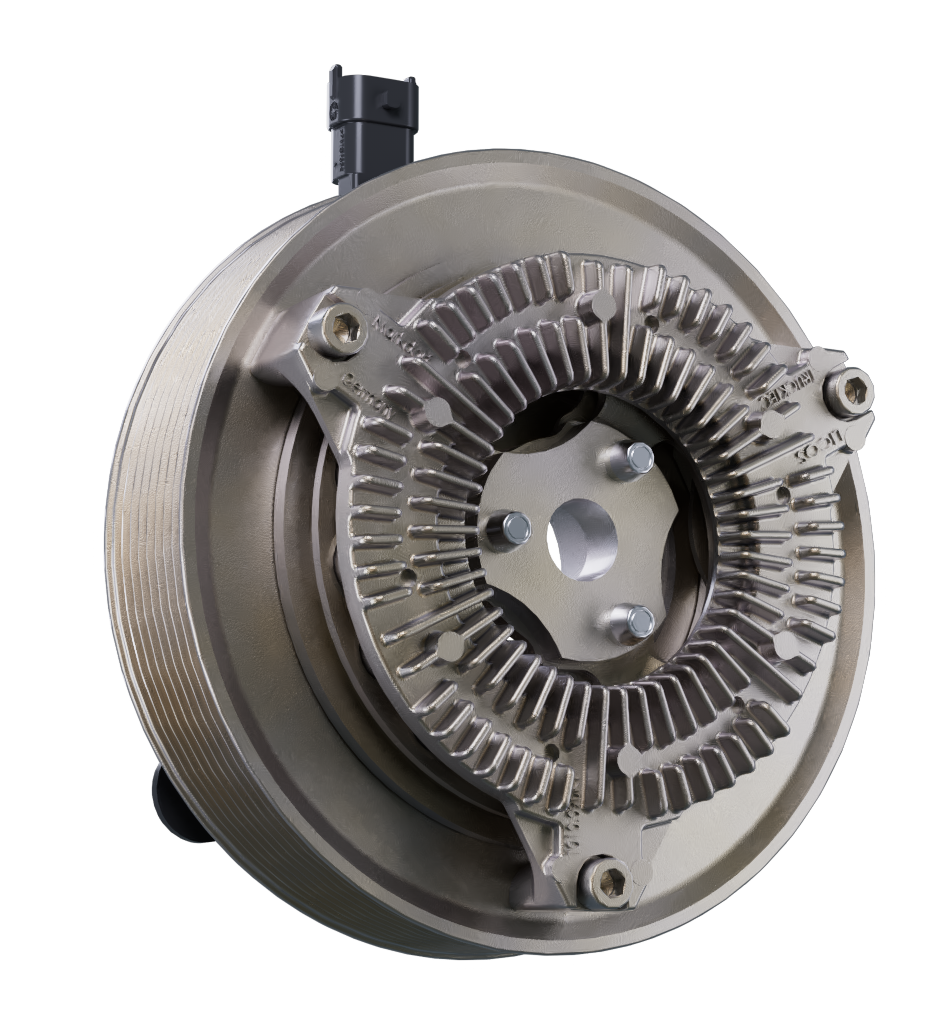

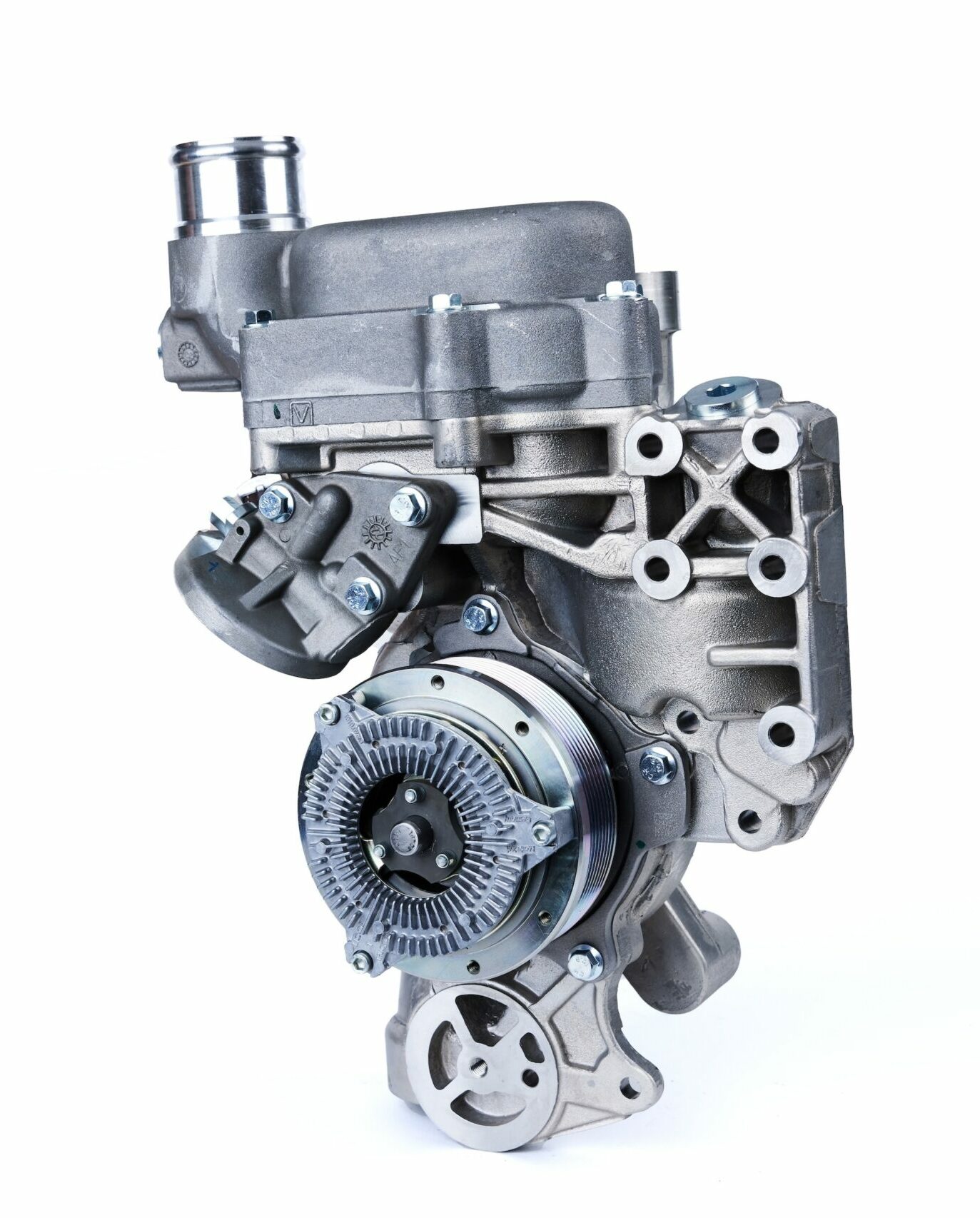

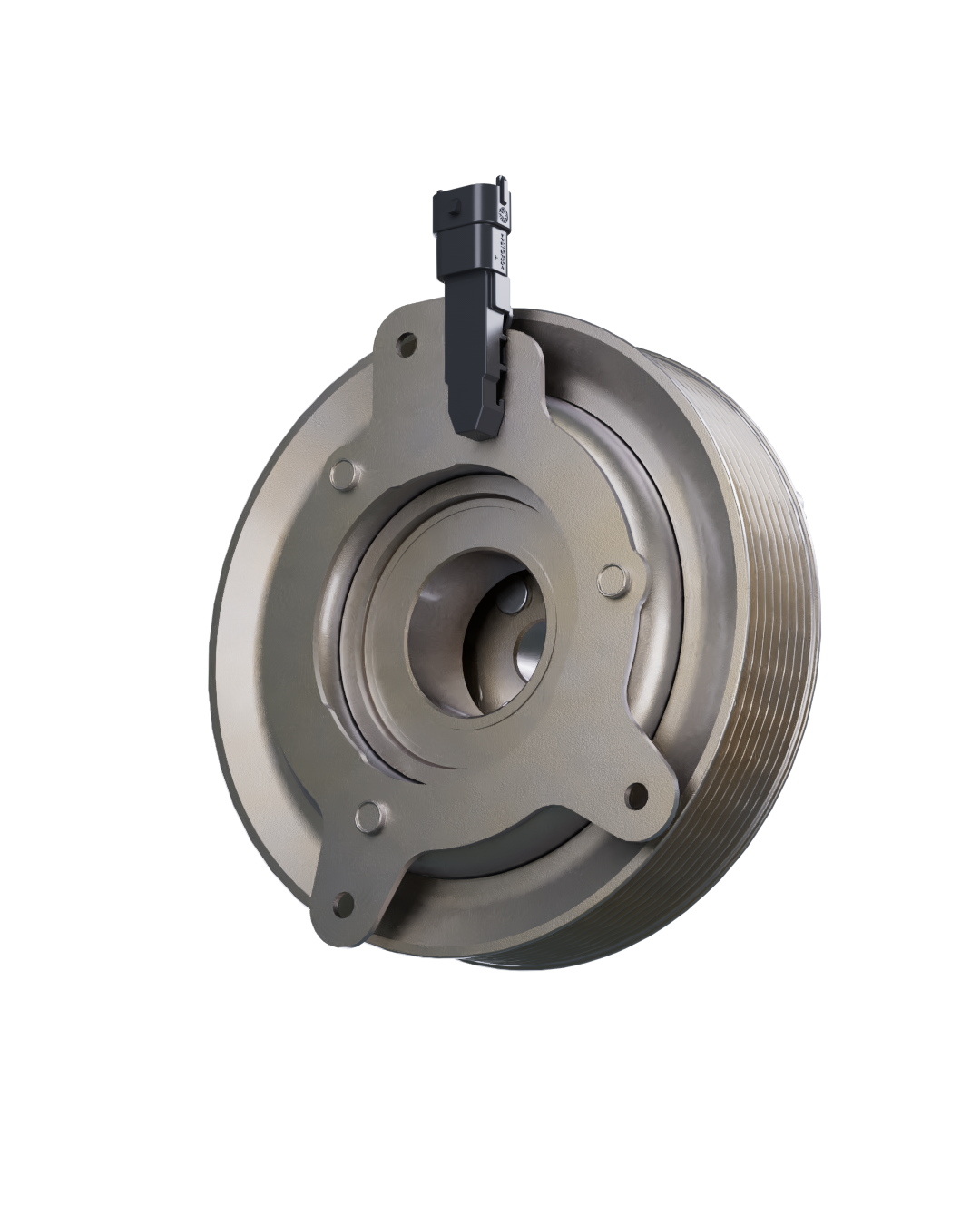

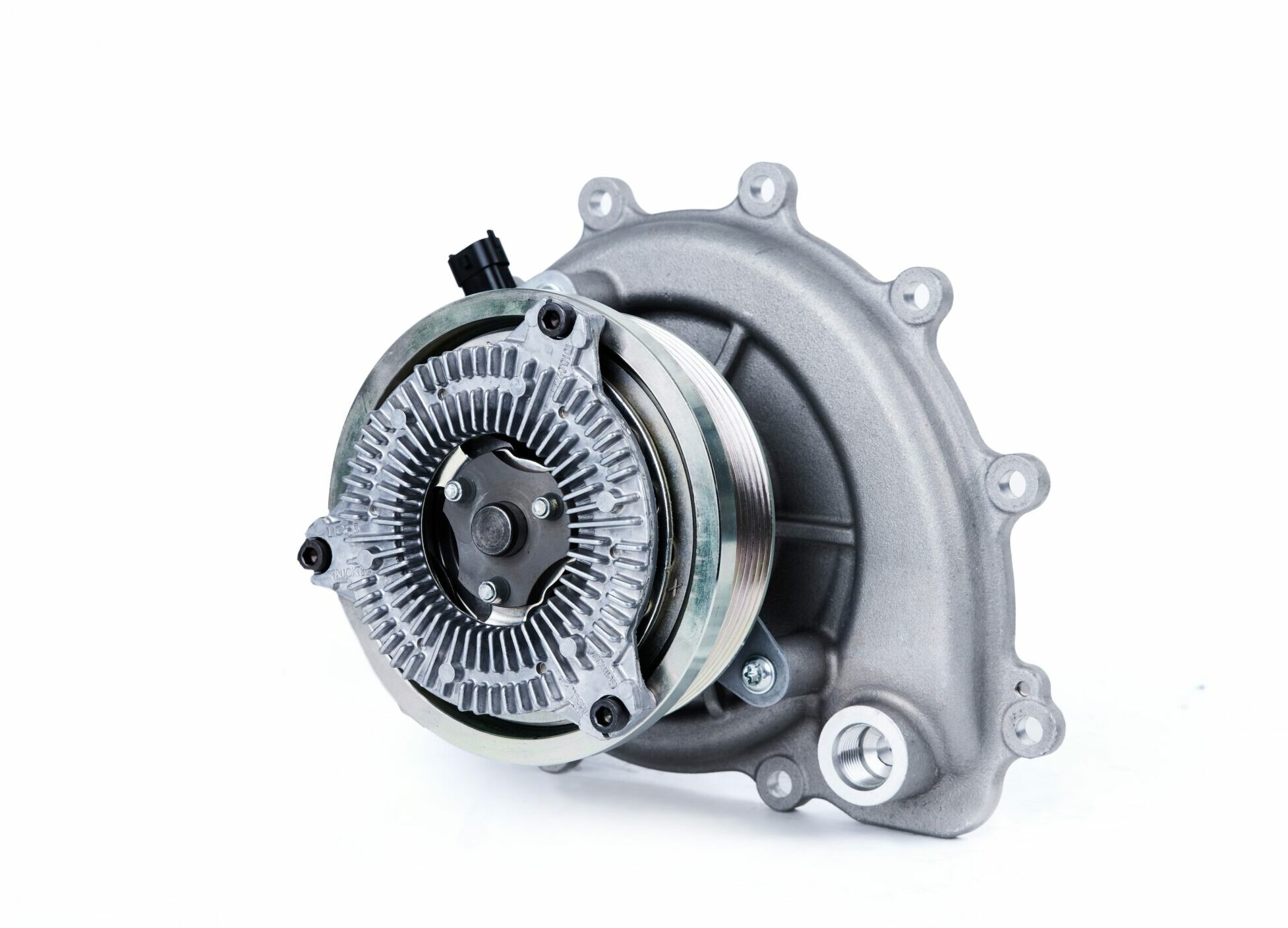

Two Speed Water Pump Clutch
Simple 2-stage electrical speed control
Full flow mode: electromagnetic friction clutch (12V or 24V systems)
Low flow mode: Eddy current control
Up to 2% improvement in fuel economy
Validated and in Production; outstanding reliability
Pump speed control for reducing parasitic loads and saving fuel
Fast switching time – 0.2 seconds switching between low and high speed (10x faster than other clutch technologies)
Easy to control – No speed sensor required
Simple controlled speed system
Customer specified clutch engagement speed (20-70%)
Type | 12 V | 24 V | ||
Max. weight | 6 lbs | 6 lbs | ||
Max. torque | 26 lbf ft | 26 lbf ft | ||
Max. speed | 6.000 rpm | 6.000 rpm | ||
Operating Temperature | -40 to 203° F | -40 to 203° F | ||
Storage Temperature | 40 to 104° F | 40 to 104° F | ||
Voltage | 10 – 16 VDC | 20 – 32 VDC |
Type | 12 V | 24 V | ||
Max. weight | 3 kg | 3 kg | ||
Max. torque | 35 Nm | 35 Nm | ||
Max. speed | 6.000 rpm | 6.000 rpm | ||
Operating Temperature | -40 – 95° C | -40 – 95° C | ||
Storage Temperature | 5 – 40° C | 5 – 40° C | ||
Voltage | 10 – 16 VDC | 20 – 32 VDC |
