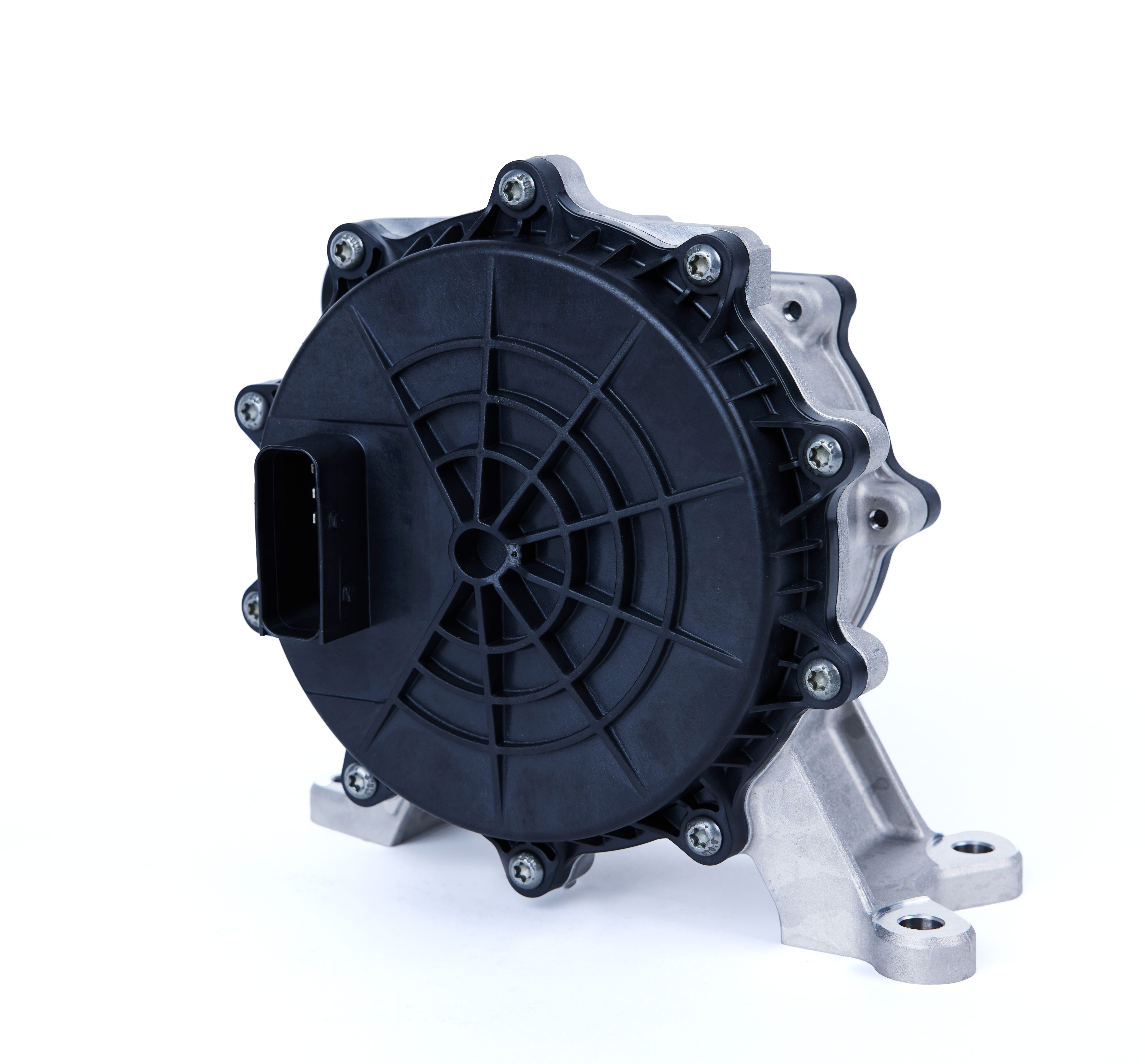

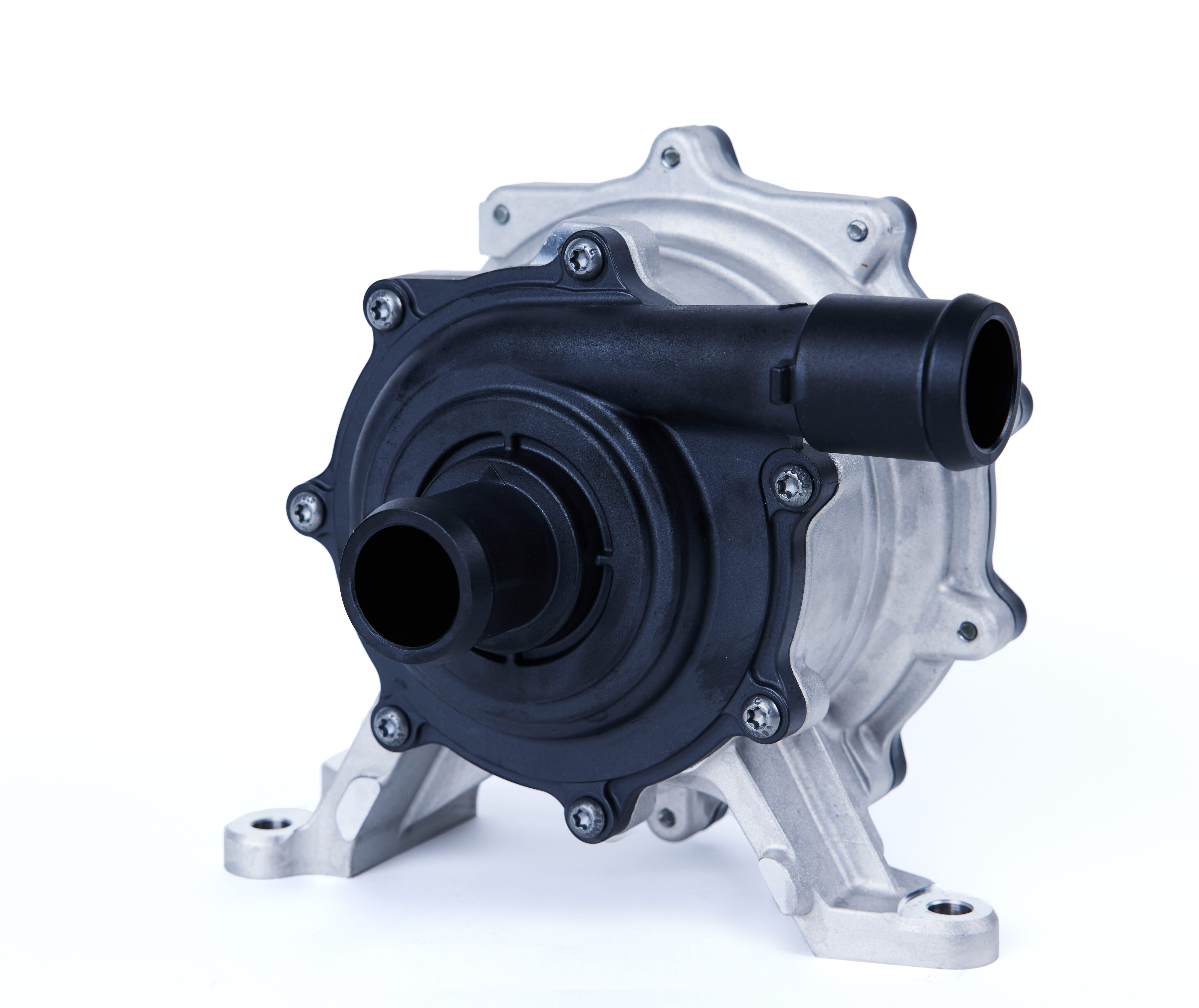

600W Electric Water Pumps

Developed for the cooling of hybrid and electric vehicle batteries and power electronics. Concentric’s electric coolant pumps have been designed without the need for a dynamic seal, removing seal failure modes, thus allowing for an extended lifetime and periods of dry running. The hydraulic pump design can be tailored to meet specific customer performance requirements. Intelligent J1939 CAN control with performance feedback and fault detection capability.Developed for the cooling of hybrid and electric vehicle batteries and power electronics. Concentric’s electric coolant pumps have been designed without the need for a dynamic seal, removing seal failure modes, thus allowing for an extended lifetime and periods of dry running. The hydraulic pump design can be tailored to meet specific customer performance requirements. Intelligent J1939 CAN control with performance feedback and fault detection capability.

Specifications

US Metric
ModelRated FlowRated Pressure
200W10.5 GPM22 psi
600W26 GPM36 psi
High Voltage+130 GPM+50 psi
ModelRated FlowRated Pressure
200W40 l/min1.5 bar
600W100 l/min2.5 bar
High Voltage+500 l/min+3 bar

Product Features

  • Heavy Duty Capable

    50,000hrs life, validated for on and off highway applications with severeĀ  environment capability.

  • Wide temperature range

    Operating temperatures from -40 to +125C

  • Wet Rotor

    The wet rotor design assists with cooling the electric motor and controller, enabling greater resistance to extremes of environmental temperatures.

Product Information

The wet rotor design assists with cooling the electric motor and controller, enabling greater resistance to extremes of environmental temperatures.
